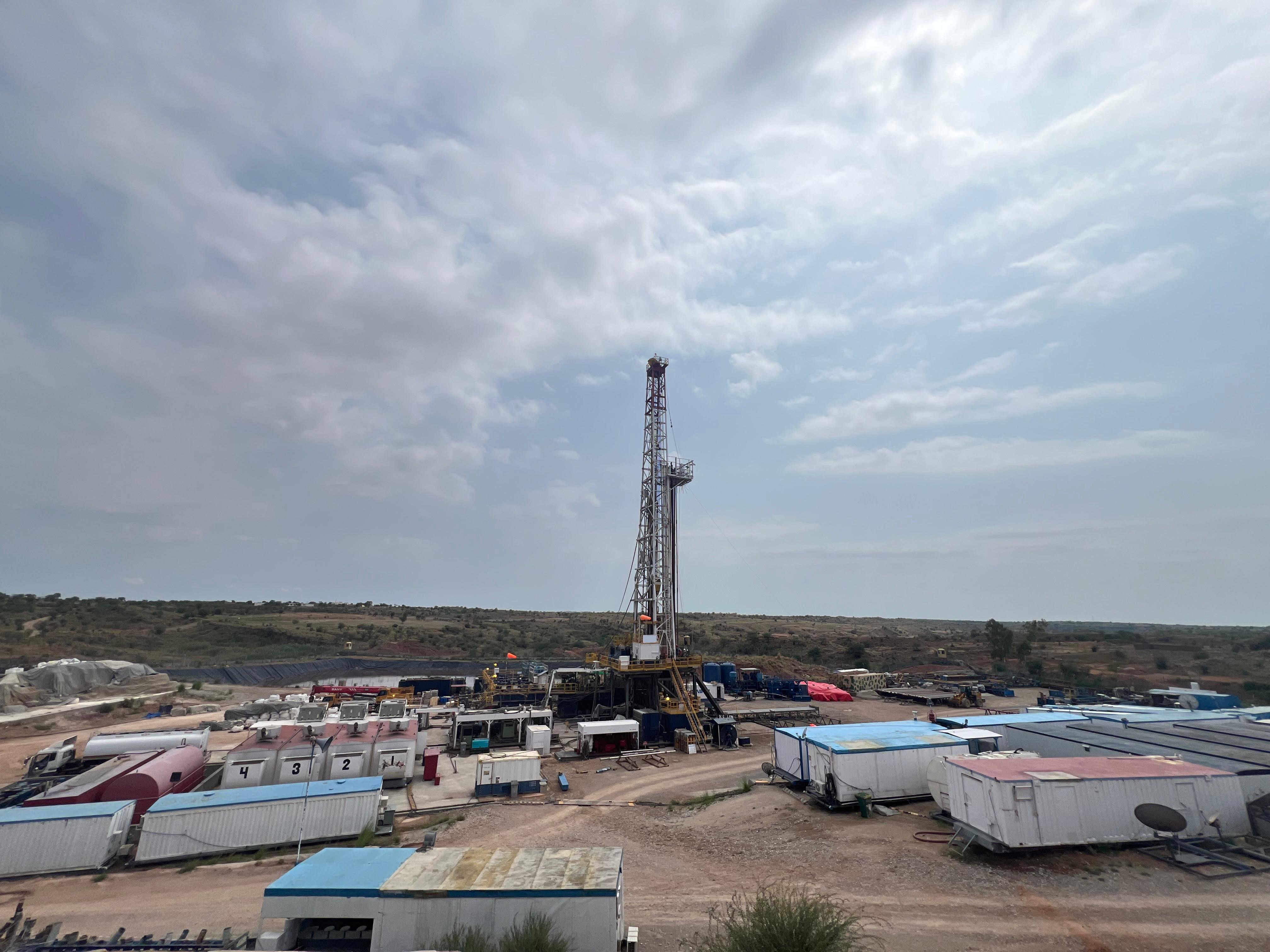

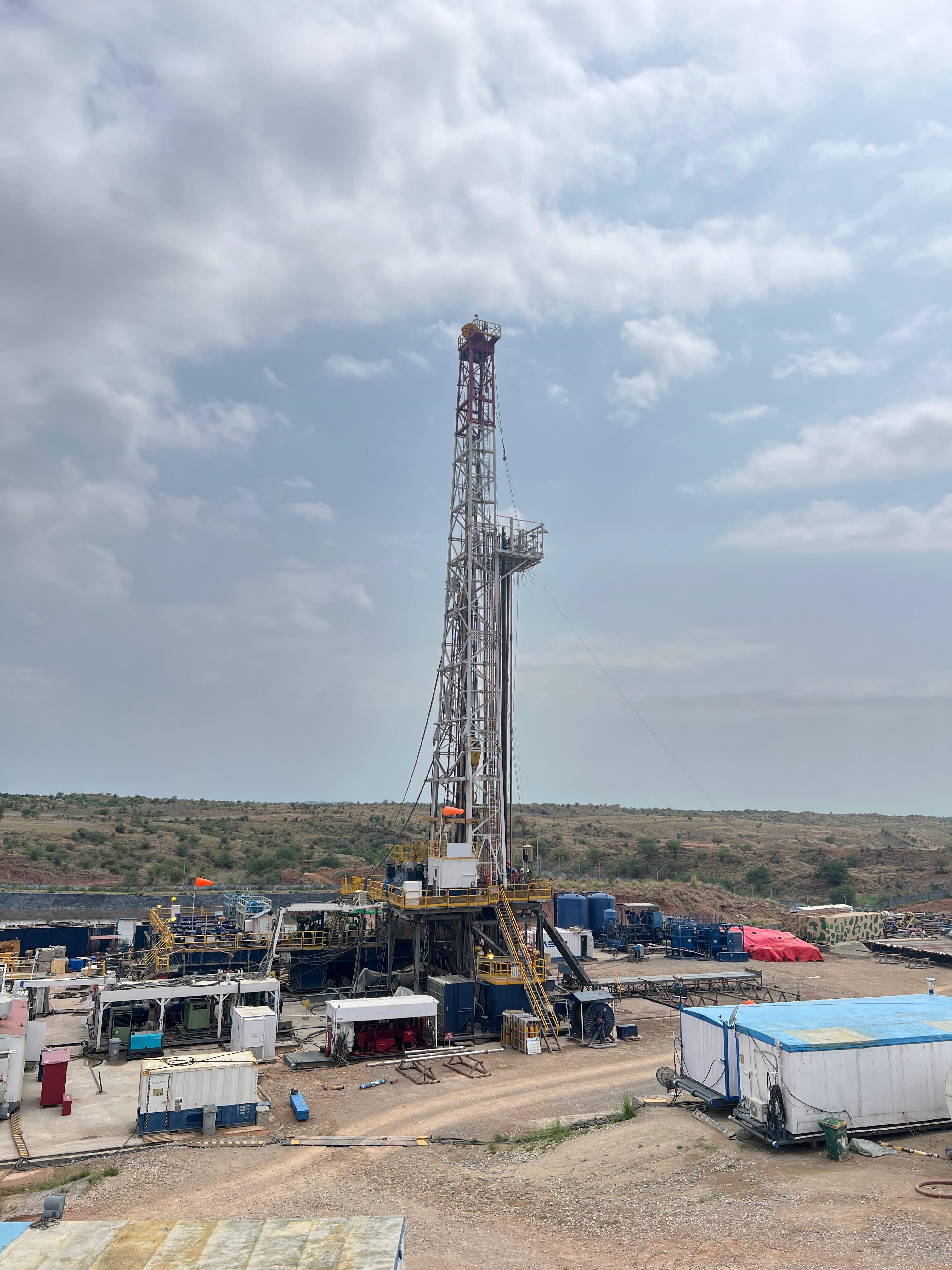

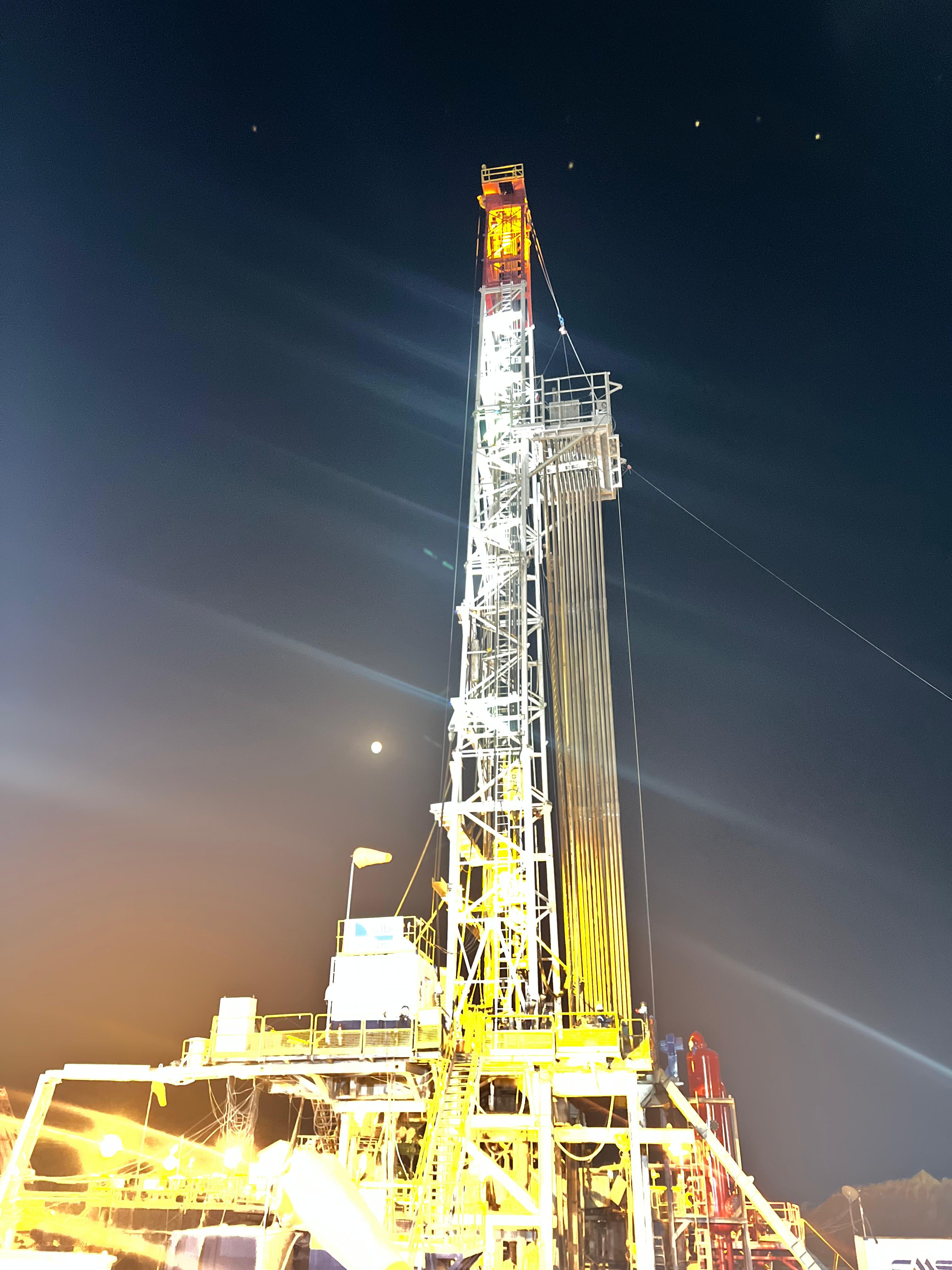

Rig-15

2,000 HP

Rig Description:

Manufacturer: Pyramid
Basic Design: K-Type Cantilever
Drilling Depth: 20,000 ft.
Manufacture Date: 1976

Storage Capacities:

Active Mud System: 840 bbl
Reserve Mud System: 2100 bbl
Water Storage: 1000 bbl
Diesel Storage: 800 bbl

Power System:

Diesel – Electric Land Rig 4 x MTU Detroit
1480 HP engines 4 x 1720 kVA KATO
Generators M&I Power Control Room (SCR)

Circulation System:

System Pressure Rating: 5,000 psi
Mud Tank Capacity: 2,940 bbl – each mud
tank equipped with agitator
Three (03) x 1600 HP National 12-P-160
Mud Pumps
Each Mud pump- Two (02) x GE 752 800 HP
DC Motor

Rotating System:

Top Drive System: TDS – 11S
800 HP, 500 Ton
Integrated Swivel
Rotary Table: National 37-1/2″

Well Control Equipment:

Blow-out Preventer: 13-5/8” – 10K
stack 21-1/4” – 2K annular with 20-3/4”
– 3K Double Ram
Choke Manifold – 10,000 psi
Accumulator Unit: 32 bottles
3,000 psi

Solids Control Equipment:

Three (03) x Derrick Hyperpool Shale
Shakers
Derrick Mud Cleaner
Three (03) x 10” Desander cones Derrick
16 x 4” Desilter cones Derrick
Derick Vacuum degasser

Hoisting System:

Drawworks GD 1500 E – 2,000 HP
Two (02) x GE 752 DC motors
Mechanical & Aux Brake (Baylor 7040)
Mast: 142 ft Pyramid
Cantilever 500 Ton
Crown Block: Pyramid 1,000,000 lbs
Six (06) + One (01) x 60” sheaves
Travelling Block: GD 550 Ton – 55T660
Drill Line: 1-1/2”
Hook
Swivel: National P-400

Others:

Rig Move Loads: 160
Main & Mini Camp available
Main Camp: Two (02) * CAT C-15 & CAT 3456

Versatile Power for Demanding Operations

Engineered to Perform Anywhere in the World

Rig-15 is a high-capacity drilling rig built for versatility across diverse geological formations and climates. Equipped with advanced automation, real-time monitoring, and modular construction, it delivers consistent performance, operational safety, and rapid deployment — ensuring maximum uptime in even the most challenging environments.
