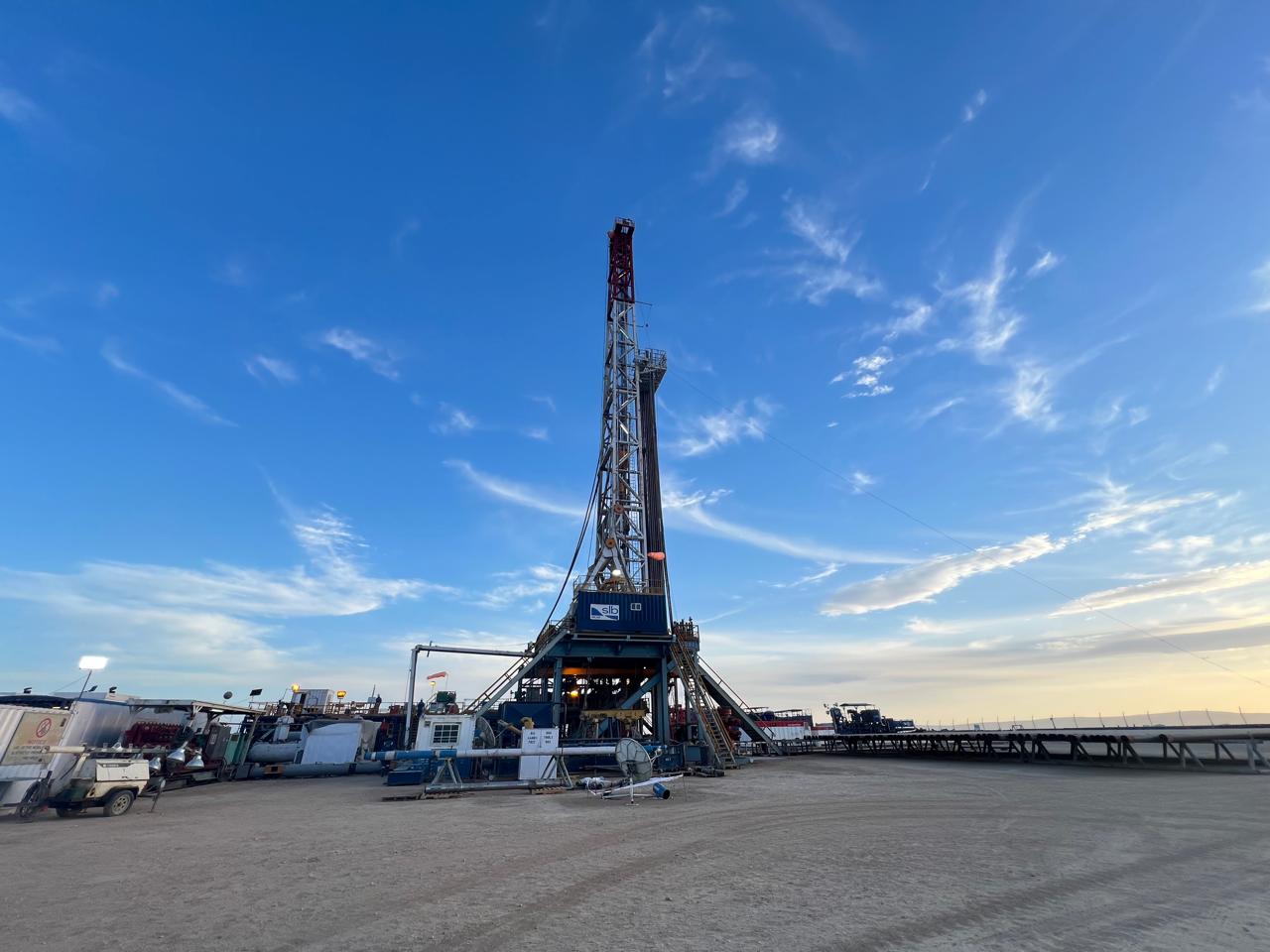

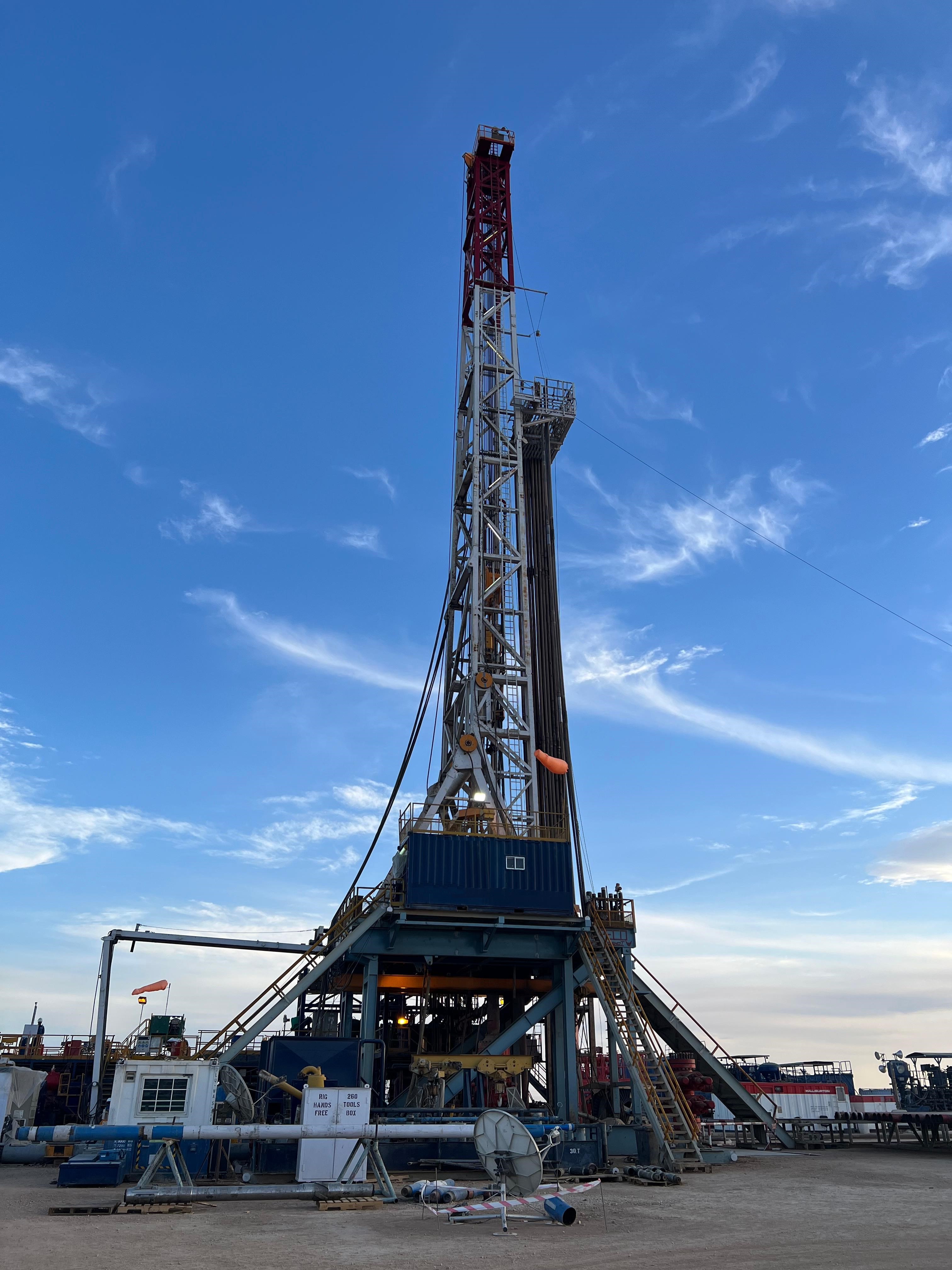

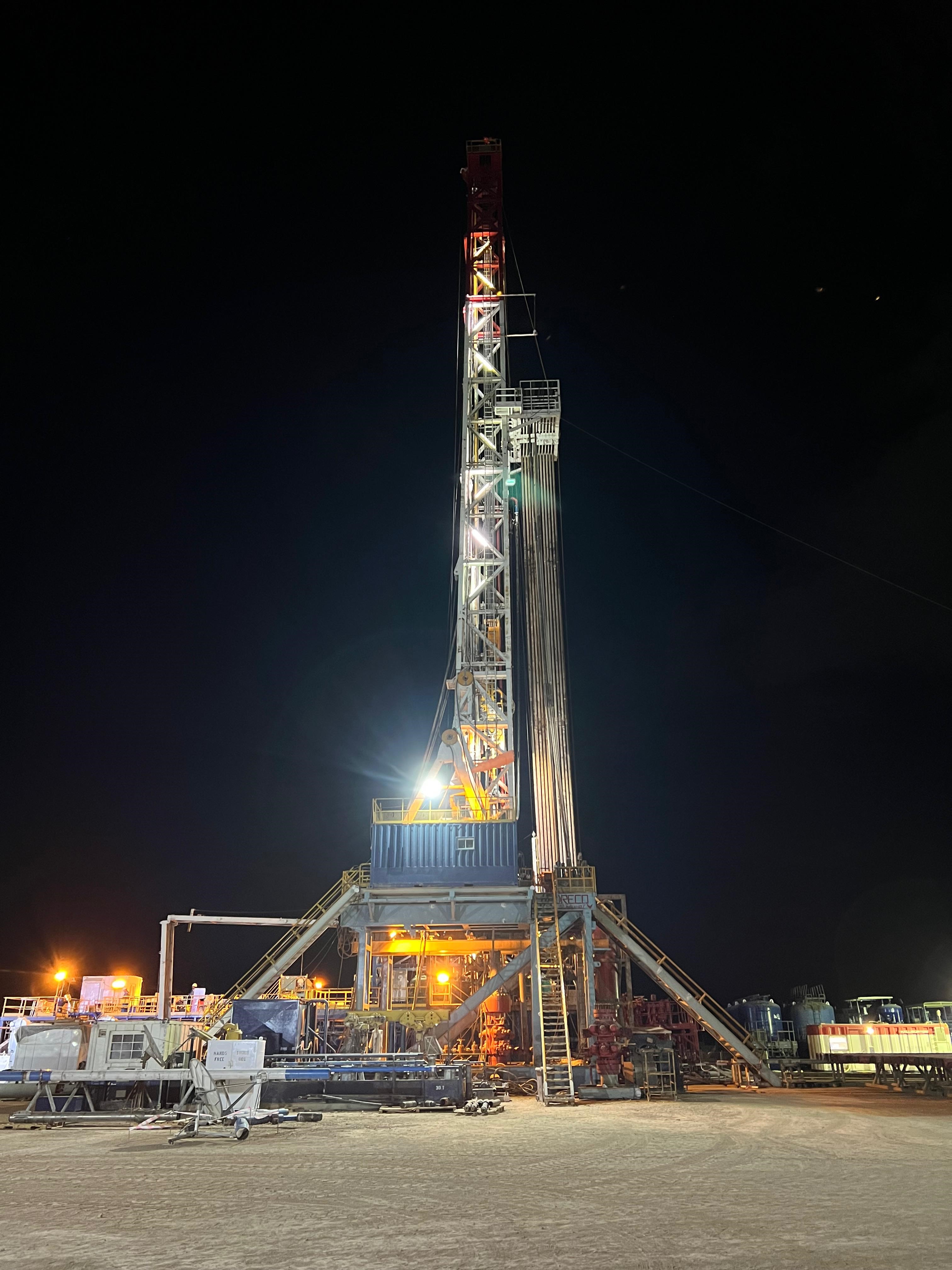

Rig-60

Precision Engineering Meets Eco-Friendly Innovation.

Rig Description:

Manufacturer: DRECO
Basic Design: Sling Shot
Drilling Depth: 12,000 ft.
Service Date: 1982

Storage Capacities:

Active Mud System: 800 bbl
Reserve Mud System: 1900 bbl
Water Storage: 520 bbl
Diesel Storage: 820 bbl

Power System:

Three (03) x 3512 + One (01) x D
-399
Four (04) x KATO Generators
ROSS Hill Power Control Room

Circulation System:

System Pressure Rating: 5,000 psi
Mud Tank Capacity: 2,700 bbl
– each
mud tank equipped with agitator
Two (02) x 1600 HP IDECO Mud Pumps
One (01) x 1600 HP GD PZL
-11
Each Mud pump
– Two (02) x GE 752
800 HP DC Motor

Rotating System:

Top Drive System: TDS
– 11S
800 HP, 500 Ton
Integrated Swivel
Rotary Table: IDECO 27
-1/2″

Well Control Equipment:

Blow out Preventer: 13
-5/8”
– 10K stack
Choke Manifold
– 10,000 psi
Accumulator Unit: 24 bottles
3,000 psi

Solids Control Equipment:

Three (03) x FLC 503 Derrick Shale
Shakers
Derrick Mud Cleaner
Two (02) x 12” Desander cones Brandt
16 x 4” Desilter cones Brandt
Derick Vacuum degasser

Hoisting System:

Drawworks IDECO 1200 E
– 1200 HP
Two (02) x GE 752 DC motors
Mechanical & Aux Brake (Dretech 3550)
Mast: DRECO Cantilever 787,000 lbs
with 12 lines
Crown Block: IDECO
– 350 Ton
Six (06) x 50” + One (01) x 50” sheaves
Travelling Block: IDECO TB525
Hook
Swivel: National P
-400

Others:

Rig & Camp Move Loads: 150
Main & Mini Camp available
Main Camp Two (02) * CAT 3406

Next-Level Efficiency for Advanced Drilling Operations

Precision Engineered. Performance Driven.

Rig-60 is a technologically advanced drilling rig designed for maximum efficiency and precision across diverse operational demands. Featuring fully integrated digital controls, energy-efficient systems, and streamlined modular design, it delivers consistent high performance while reducing operational costs and environmental impact — setting a new standard for modern drilling.

Rig-60 Key Features

Smart Diagnostics

Continuous system monitoring with predictive alerts reduces unplanned downtime and extends component life.

Enhanced Operator Interface

User-friendly control cabin with ergonomic design and intuitive touchscreen operations for reduced fatigue.

Low-Maintenance Engineering

Durable components and simplified access points minimize maintenance time and service requirements.

Rig-60 Specifications Guide

Get the complete Rig-60 technical guide, including precision control details, energy efficiency data, and modular design specifications.
